About this product:
- Technical Data
- Datasheet
Additional information

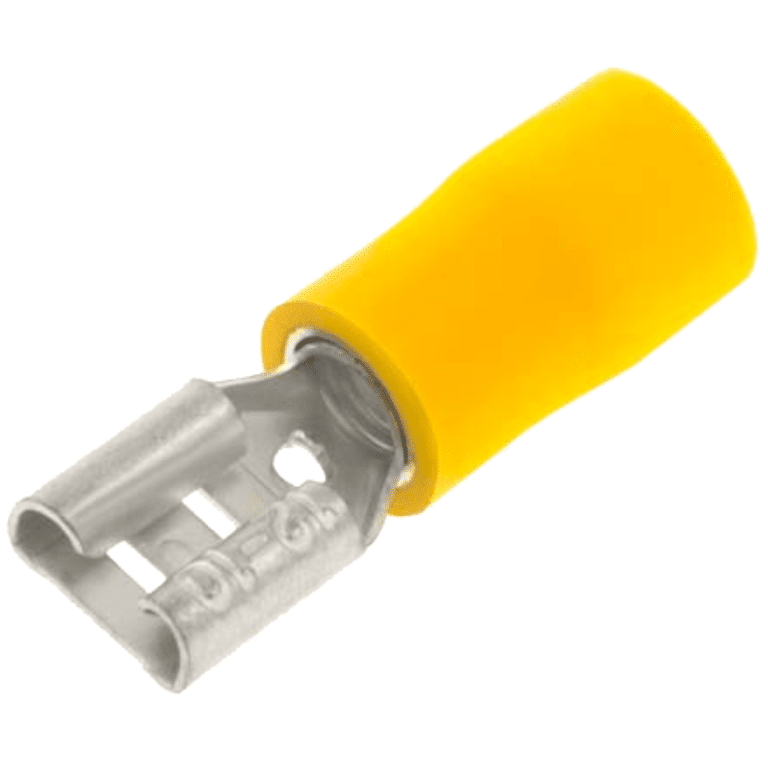

| Product Name | Terminal |
|---|---|
| Type Name | Female Push On |
| Qualifier | Pre-Insulated Female Push-on terminals have a wide opening which allows cables to slide into the ba |
| Current Rating (max) | 24 A |
| Voltage (max) | 600 V |
| Insulated | Part Insulated |
| Terminal Material | Copper |
| Insulation Colour | Yellow |
| Cable Size Range | 2.5|4 mm2 |
| Tab/Pin Size | 10 mm |
| Insulation Material | PVC |
| Colour | Yellow |
| Finish | Tinned |
| Length | 28.6 mm |
| Width | 10 mm |
| Working Temperature | -10|75 Degrees C |
| Standards | |
| Brand | Unicrimp |
| Product Type | Female Piggy Back Terminals |
| Voltage Max | 600 V |
| Terminal Material | Copper |
| Finish | Tinned |
| Colour | Yellow |
| Standards |
